Setup

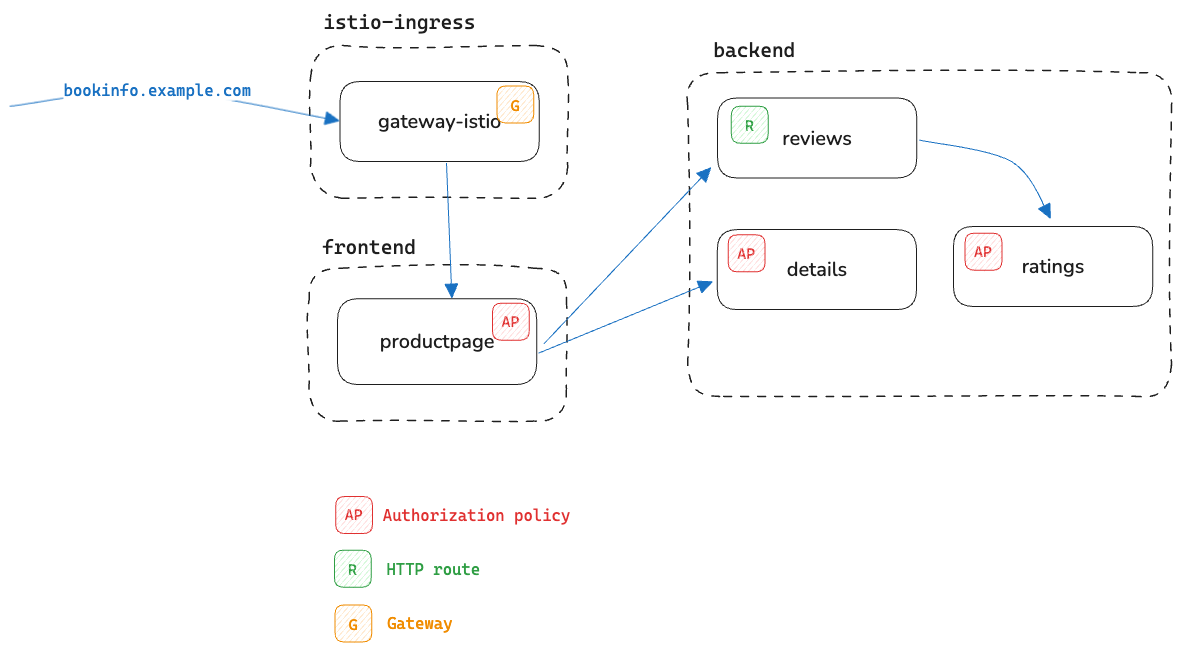

The objective of this activity is to construct an initial state, where:

1. Istio is installed in sidecar mode.
2. The sample application, bookinfo, is deployed with sidecars.
3. An ingress gateway is deployed, and configured to route requests to the productpage service.
4. A set of L4 and L7 authorization policies are in place and functioning.
5. A traffic policy is in place that routes all requests for the reviews service to the reviews-v3 workload.

You will find all referenced artifacts in the accompanying GitHub repository.

Provisioning a Kubernetes cluster

Feel free to provision a Kubernetes cluster of your choice, locally or in the cloud.

The following snippet installs a local Kubernetes cluster with k3d. For more information, see here.

k3d cluster create my-cluster \
    --api-port 6443 \
    --k3s-arg "--disable=traefik@server:0" \
    --port 80:80@loadbalancer \
    --port 443:443@loadbalancer

Install Istio in sidecar mode

Per the instructions for installing Istio in sidecar mode with Helm:

Configure the Helm repository:

helm repo add istio https://istio-release.storage.googleapis.com/charts
helm repo update

Install the Istio CRDs:

helm install istio-base istio/base -n istio-system \
  --set defaultRevision=default --create-namespace

Install the Istio CNI:

helm install istio-cni istio/cni -n istio-system \
  --set global.platform=k3d --wait

About the global.platform flag

The global.platform flag is a requirement on specific platforms when installing the Istio CNI.

Install the istiod control plane:

helm install istiod istio/istiod -n istio-system --wait

Validate

Verify that both istiod and istio-cni pods are in Running state, in the istio-system namespace:

kubectl get pod -n istio-system

List the helm releases in istio-system:

helm ls -n istio-system

Deploy bookinfo

In this scenario, the bookinfo services are split across two namespaces:

• the frontend namespace hosts the productpage service
• the backend namespace hosts the services upstream from it: reviews, ratings, and details

Create the namespace:

kubectl create ns frontend

Label the namespace for sidecar injection:

kubectl label ns frontend istio-injection=enabled

Apply the manifests:

kubectl apply -f artifacts/bookinfo-frontend.yaml -n frontend

Repeat for the backend namespace:

kubectl create ns backend
kubectl label ns backend istio-injection=enabled
kubectl apply -f artifacts/bookinfo-backend.yaml -n backend

Validate

Verify that all pods have two containers, implying that the sidecar injection took place:

kubectl get pod -n frontend
kubectl get pod -n backend

To help verify that the services are functioning, deploy a curl image to the cluster:

kubectl apply -n frontend -f https://raw.githubusercontent.com/istio/istio/refs/heads/master/samples/curl/curl.yaml

Make a test call to the ratings service:

kubectl exec deploy/curl -n frontend -- curl -s ratings.backend:9080/ratings/123 | jq

Call the reviews service:

kubectl exec deploy/curl -n frontend -- curl -s reviews.backend:9080/reviews/123 | jq

Finally, call the productpage service:

kubectl exec deploy/curl -n frontend -- curl -s productpage:9080/productpage | grep title

Make sure the calls succeed.

Configure an ingress gateway

We have the option to use either the older Istio-specific method of statically provisioning a gateway with Helm, or the Kubernetes Gateway API which allows for the dynamic provisioning of gateways.

We opt for the latter.

Install the Kubernetes Gateway API standard channel CRDs:

kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.3.0/standard-install.yaml

Create the namespace where the Gateway is to be provisioned:

kubectl create ns istio-ingress

Review the Gateway configuration:

---
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: gateway
spec:
  gatewayClassName: istio
  listeners:
  - name: http
    hostname: "bookinfo.example.com"
    port: 80
    protocol: HTTP
    allowedRoutes:
      namespaces:
        from: Selector
        selector:
            matchLabels:
              kubernetes.io/metadata.name: frontend

The gateway is configured to allow the binding of routes defined in the namespace frontend.

Apply the Gateway resource:

kubectl apply -f artifacts/gateway.yaml -n istio-ingress

Next, define an HTTPRoute to expose specific endpoints on the productpage service through the gateway:

---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: productpage
spec:
  parentRefs:
  - name: gateway
    namespace: istio-ingress
  hostnames: ["bookinfo.example.com"]
  rules:
  - matches:
    - path:
        type: Exact
        value: /productpage
    - path:
        type: PathPrefix
        value: /static
    - path:
        type: Exact
        value: /login
    - path:
        type: Exact
        value: /logout
    - path:
        type: PathPrefix
        value: /api/v1/products
    backendRefs:
    - name: productpage
      port: 9080

Apply the HTTPRoute:

kubectl apply -f artifacts/ingress-route.yaml -n frontend

Validate

Capture the external IP address of the Gateway:

export GW_IP=$(kubectl get gtw -n istio-ingress gateway \
  -ojsonpath='{.status.addresses[0].value}')

Make a curl request to the ingress gateway using the configured hostname bookinfo.exmaple.com:

curl -s bookinfo.example.com/productpage --resolve bookinfo.example.com:80:$GW_IP | grep title

Configure authorization policies

You will apply three AuthorizationPolicy resources that establish the following policy:

1. Only the ingress gateway should be able to make requests to the productpage service.
2. Only reviews workloads can call the ratings service.
3. Only productpage can make calls to the details service.

Furthermore:

1. The first policy will be a layer 4 policy that is concerned strictly with workload identity.
2. The remaining policies have layer 7 aspects that allow only specific HTTP methods (for example, GET or POST).

Review all three policies:

---
apiVersion: security.istio.io/v1
kind: AuthorizationPolicy
metadata:
  name: productpage-authz
spec:
  selector:
    matchLabels:
      app: productpage
  action: ALLOW
  rules:
  - from:
    - source:
        principals:
        - cluster.local/ns/istio-ingress/sa/gateway-istio

Note how the identity of the allowed caller is specified via the Istio spiffe id which is a function of the workload's location (namespace) and service account.

---
apiVersion: security.istio.io/v1
kind: AuthorizationPolicy
metadata:
  name: ratings-authz
spec:
  selector:
    matchLabels:
      app: ratings
  action: ALLOW
  rules:
  - from:
    - source:
        principals:
        - cluster.local/ns/backend/sa/bookinfo-reviews
    to:
    - operation:
        methods: ["GET", "POST"]

---
apiVersion: security.istio.io/v1
kind: AuthorizationPolicy
metadata:
  name: details-authz
spec:
  selector:
    matchLabels:
      app: details
  action: ALLOW
  rules:
  - from:
    - source:
        principals:
        - cluster.local/ns/frontend/sa/bookinfo-productpage
    to:
    - operation:
        methods: ["GET"]

Apply all three policies:

kubectl apply -f artifacts/productpage-authz.yaml -n frontend

kubectl apply -f artifacts/ratings-authz.yaml -n backend

kubectl apply -f artifacts/details-authz.yaml -n backend

Validate

1. A request from an unauthorized workload to the productpage service should be denied:

   kubectl exec deploy/curl -n frontend -- \
     curl -s --head productpage:9080/productpage


2. A request from an unauthorized workload to the ratings service should be denied:

   kubectl exec deploy/curl -n frontend -- \
     curl -s ratings.backend:9080/ratings/123


   It should produce a HTTP/1.1 403 Forbidden response.

3. A request from an unauthorized workload to the details service should be denied:

   kubectl exec deploy/curl -n frontend -- \
     curl -s details.backend:9080/details/123


4. A request through the ingress gateway to product page and upstream should succeed:

   curl -s --head bookinfo.example.com/productpage \
     --resolve bookinfo.example.com:80:$GW_IP


Configure traffic policies

When productpage makes requests against the reviews service, the requests are load-balanced across all three versions of the service.

Verify this by making several requests to the productpage service and "grepping" for the keyword "reviews-":

curl -s bookinfo.example.com/productpage --resolve bookinfo.example.com:80:$GW_IP | grep -m 1 "reviews-"

Here is a convenient command to periodically call productpage through the gateway:

while true; do
  curl -s bookinfo.example.com/productpage --resolve bookinfo.example.com:80:$GW_IP | grep -m 1 'reviews-'
  sleep 0.5
done

Review the following traffic policy which will route all requests to reviews-v3:

---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: bookinfo-reviews
spec:
  parentRefs:
  - name: reviews
    kind: Service
    group: ""
  rules:
  - backendRefs:
    - name: reviews-v3
      port: 9080

Apply the policy:

kubectl apply -f artifacts/route-reviews-v3.yaml -n backend

Validate

Verify that all requests are routed to reviews-v3 by making repeated calls to productpage:

curl -s bookinfo.example.com/productpage --resolve bookinfo.example.com:80:$GW_IP | grep -m 1 "reviews-"

Summary

We have configured our initial state: a system of microservices functioning with Istio in sidecar mode, with a combination of L4 and L7 security policies, and a traffic policy applied to the reviews service.

In the next section, we will work on migrating this system to Istio ambient mode.
